Bag Durability Testing: The Pass Numbers to Demand
The defects that turn into returns almost never show up on the sample. The edge paint that cracks, the strap that pulls loose, the zipper that dies — those surface in month two of your customer’s use, long after you approved a bag that looked flawless on your desk. The only way to catch them before they ship is to put the bag through physical tests with actual pass thresholds, not a vibe check.
So I’ll skip the lecture. Here’s the exact test set we run and the numbers a custom bag should hit. Start with the table; below it I’ll tell you which of these actually matter for your bag, and the one detail almost every “bag testing” guide leaves out.
The bag test table: method, pass threshold, and what failure looks like
| Test | Recognized method | Pass threshold (what good looks like) | What failure looks like on a real bag |
|---|---|---|---|
| Colorfastness to rubbing (dry/wet) | ISO 105-X12 / AATCC 8, graded on the grey scale 1–5 | ≥ grade 3–4, no obvious color transfer | Dark fabric stains a white shirt; panels fade unevenly after use |
| Abrasion / pilling | Martindale (ISO 12947) or Wyzenbeek (ASTM D4157) | No significant pilling or surface break at the rated rub count | Fuzzing and thin spots at corners and base |
| Fabric weight consistency | ASTM D3776 | Matches spec GSM/denier batch to batch | “Same” fabric arrives lighter and limper in bulk |
| Static load | Hang 2× rated weight for 24 h | Handles, straps, and seams hold — no deformation, no dropped stitches | Handle stretches or tears away; seam opens under everyday weight |
| Drop test | 0.8 m drop × 10 | Structure stays intact, no hardware detaches | Base splits, feet pop off, frame collapses |
| Seam / strap attachment strength | Tensile pull (ISO 13934-1 method family) | 120–300 N at handles, straps, key seams — no thread break or split | The classic “strap ripped off three weeks in” return |
| Zipper reciprocating cycles | ASTM D2061 family | 3,000–5,000 open/close cycles, smooth, teeth undeformed | Zipper jams, splits, or won’t stay closed |
| Zipper puller attachment | ASTM D2062 | Puller withstands ≥ 80 N with no detachment | Pull tab snaps off in hand |
| Hardware salt spray (corrosion) | ASTM B117 (zippers: ASTM D2059) | No rust or plating loss after 24–48 h | Zinc-alloy buckles bloom rust; plating flakes |
| Hardware temperature cycling | Hold at 60 °C and −20 °C, 48 h | No cracking, warping, or delamination/de-gluing | Cheap plastic buckles go brittle and snap in cold |
Those numbers are the acceptance thresholds we hold our own production to, and they line up with the international methods in the middle column so you can demand the right test by name instead of asking vaguely for “quality testing.”
Which of these tests actually matter for your bag?
You don’t need all of them. You need the handful that map to how your bag fails — that’s the part the encyclopedic “every standard on earth” articles never tell you, because they’re trying to list, not advise.
A canvas tote lives and dies on colorfastness and seam strength — it’s going to get loaded with books and rub against clothing, so the failures you’ll actually field are color transfer and a handle giving way. A technical backpack shifts the weight onto the zipper. Cycling, buckle strength, and abrasion at the base and shoulder straps. A fashion handbag with painted edges? Edge-paint adhesion and hardware plating (salt spray) are where the complaints come from, not load. A travel duffel that gets thrown into overheads needs the drop and load tests to mean something.
Pick the four or five that match your use case and insist on real numbers for those. Demanding a 25-test battery on a simple cotton tote just runs up your sample cost; skipping the zipper cycle test on a backpack is how you find out the hard way. (If you’re not sure which failure modes your design invites, that’s exactly the kind of thing a factory should flag for you at the quote stage — more on that below.)
Fabric and color: the failures customers see first

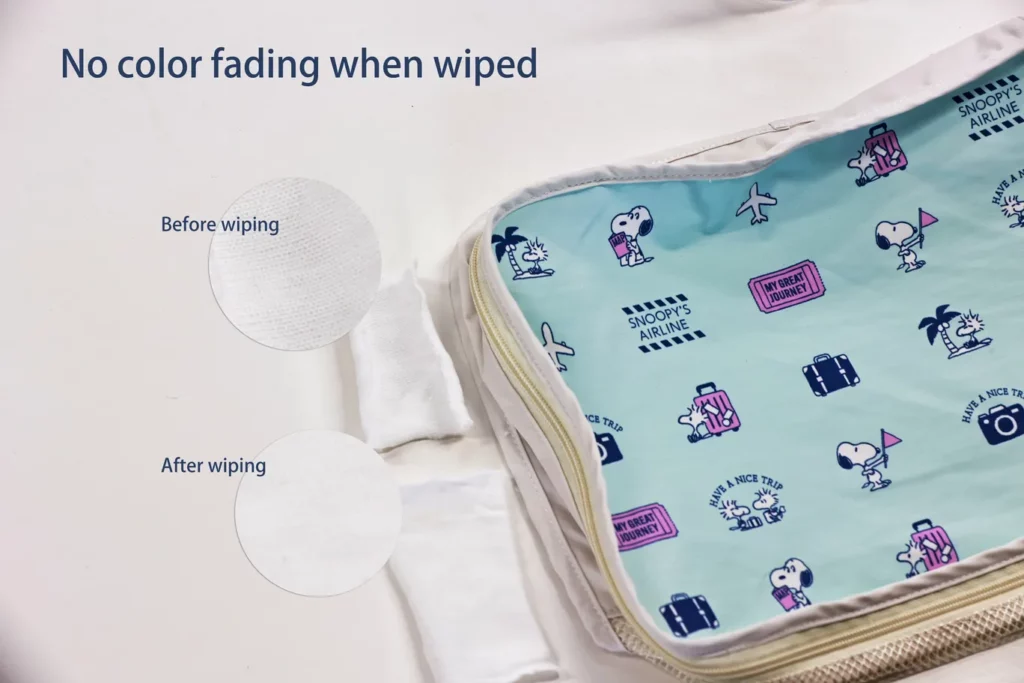

The fabric tests catch the complaints that arrive by photo. Colorfastness to rubbing (ISO 105-X12) is graded on a 1–5 grey scale, where 5 is no transfer and 1 is heavy staining; for a bag that rubs against clothes all day, 3–4 is the floor, and anything below 3 means your customer’s white tee is at risk. Sublimation prints on dark fabric are a notorious offender here, which is why we test color on the actual bulk dye lot, not just the swatch.
Abrasion resistance — run as a Martindale (figure-eight) or Wyzenbeek (back-and-forth) rub — tells you whether the corners and base will fuzz and thin out before the bag’s life is up. And fabric weight (ASTM D3776) is the quiet one: when bulk fabric comes in lighter than the approved sample, every downstream property — drape, strength, structure — drifts with it. That’s less a “test” than a guard against the sample looking right while the bulk arrives wrong.
Stress and structure: the returns that hurt
These are the tests that decide whether your bag survives being used rather than just looked at.
Static load is the honest one: hang twice the bag’s rated weight for a full 24 hours and watch the handles, strap anchors, and load-bearing seams. Pass means no deformation, no popped stitches. The drop test (0.8 m, ten times) checks that the structure and hardware survive the bag being dropped, thrown into an overhead bin, or set down hard — base intact, feet on, frame holding. And the seam and strap pull test puts a force gauge on the parts that fail most: a quality bag takes 120–300 N at the handles and key seams without a thread breaking. That single test is the difference between a bag that lasts and the “the strap ripped off” email. Bar-tacking and stitch density at those anchor points are what get you there — the same construction details worth nailing down in your RFQ before you ever pay a deposit.
Zippers and hardware: the small parts that kill a bag
Hardware is a tiny slice of the bill of materials and the source of a huge slice of complaints, so it earns its own tests.
A zipper should run 3,000–5,000 reciprocating cycles (ASTM D2061 family) staying smooth, with teeth that don’t deform and a slider that doesn’t split — and the puller itself should take ≥ 80 N (ASTM D2062) without snapping off in someone’s hand. For corrosion, 24–48 hours of salt spray (ASTM B117; ASTM D2059 for zippers specifically) separates a real YKK-grade component from a cheap zinc-alloy buckle that blooms rust within a season near the coast. Temperature cycling between 60 °C and −20 °C for 48 hours catches the plastic buckles that go brittle and snap in winter. Spec a branded zipper and a plated metal finish in writing, and you’ve pre-empted most of this — which is the whole point of choosing hardware that survives bulk rather than discovering its limits in the field.
The detail almost every testing guide skips: sample or bulk?
A test result means nothing until you know what it was run on. This is the single most important line in this article.
A factory can hand you a beautiful test report — full marks, every box ticked — that was run on the hand-built development sample a master maker fussed over for an hour. That report tells you the design can pass. It says nothing about whether the 5,000 units coming off the line at fifteen minutes each will. The number you actually want is the same battery run on the pre-production sample made from bulk materials, and then verified again by inspection on the bulk itself. A test on the proto is a promise; a test on the bulk is proof.
This is also where physical testing and AQL inspection do different jobs and you want both. Durability testing answers “is this design strong enough?” AQL sampling answers “did this particular run get built to that strength, or did something drift?” One without the other leaves a gap — a perfectly engineered bag can still be ruined by a bad batch, and a clean batch of an under-built design still fails in the field.
What to actually demand from a factory
Don’t ask whether they “do testing.” Everyone says yes. Ask for the specifics, in writing:
- The test report on the PP or bulk run, not just the development sample — with the methods and the actual readings, not a pass/fail tick.
- Numbers against the thresholds above for the four or five tests that match your bag’s failure modes.
- Who runs the inspection. On our side, finished goods get a 100% full check, then a second 100% re-check at an independent in-house inspection company before anything leaves — which is how the readings on the report match the bag in the carton, and how we’ve held a good rate around 99% over 17 years. You can see how that’s structured on our quality control and production control pages.
Put the test requirements into your RFQ from the start, name the methods, and ask for the readings on the bulk. A factory that can produce them is a different proposition from one that can’t — and you’ll have found that out before the deposit, not after the returns. (For the bigger picture of where testing sits in the whole build, our complete bag manufacturing guide maps the full path.)
FAQ
Which bag durability tests are non-negotiable?
For almost any bag: colorfastness to rubbing, seam/strap pull strength, and a load test. Add zipper cycling and salt spray for anything with hardware, and abrasion for bags that take heavy daily wear. The exact set should match how your specific bag is used — a tote and a technical backpack fail in different places.
What’s a good colorfastness grade for a bag?
On the standard 1–5 grey scale (ISO 105-X12), aim for grade 3–4 or higher for rubbing. That means little to no color transfers onto skin or clothing in normal use. Below grade 3, expect complaints about staining, especially with dark or printed fabrics.
How many zipper open/close cycles should a quality bag survive?
A custom bag zipper should run at least 3,000–5,000 reciprocating cycles (ASTM D2061 family) and still operate smoothly, with no deformed teeth or splitting slider. Branded zippers like YKK or SBS clear this comfortably; cheap unbranded ones often don’t, which is why the brand and size belong in your spec.
Do I need a third-party lab, or are factory tests enough?
Factory tests are enough for routine durability checks if the factory will share the actual readings on the bulk run, not just the sample. For retail or marketplace compliance — or when you simply want independent proof — a third-party lab (SGS, Intertek, TUV, Bureau Veritas) adds an outside check. Many brands do factory testing on every order and a third-party test periodically or at launch.
What’s the difference between AQL inspection and durability testing?
Durability testing checks whether the design is strong enough — load, drop, zipper life, colorfastness. AQL inspection checks whether a specific production run was built correctly, by sampling finished units against a defect plan. You want both: a strong design built badly still fails, and a clean run of a weak design still fails.
Should durability testing be done on the sample or the bulk?
Both, but the one that counts is the bulk. A pass on a hand-built development sample only proves the design can work. Demand the same tests on a pre-production sample made from bulk materials, then verify on the production run — that’s what proves the bag you sell matches the bag you approved.
